Highlights
- Maximum Pulse Repetition Rate >50 MHz
- Input Range 2 μA to 4 mA (100 μV to 200 mV)
- Input Linear Range 2 μA to 160 μA (100 μV to 8 mV)
- Linear Section Transimpedance Gain 50 dB
- Transimpedance 18 kΩ
- Noise Referred to Input <0,4 μApp (20 μVpp)
- Input and Output Impedance 50 Ω
- Output Signal +5 V TTL

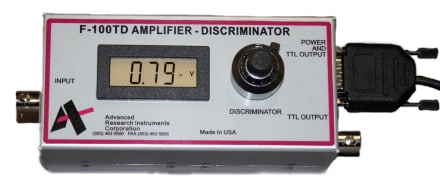

Product Description & Advantages of F-100TD
Low noise analog design
While the F-100T has a trimmer controlled threshold for ‘Set and Forget” adjustment, the F-100TD was designed for precision threshold control and monitoring , making it ideal for threshold critical applications.
Please request more information via contact form below.
